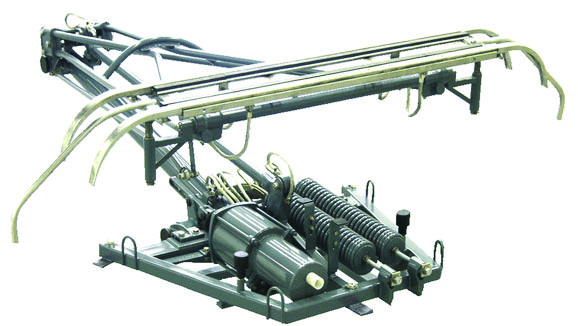

CG3-100 Light Rail Pantograph



   Rated Voltage DC 3000V
   Rated Current 800A
   Maximum Current ≤1000A
   Vehicle Speed ≤120Km/h
   Minimum Working Height 2280mm
   Maximum Working Height* 100mm
   Maximum Extension Height* 2880mm±100mm
   Lock Down Height ≤440
   Rated Static Force 80N±10N
   Force Adjustable Range 75N ~ 90N
   Raising Time ≤10s
   Lowering Time ≤10s
   Total Length ≈2400mm
   Total Width 2225mm
   Base Frame 1080mm x 745mm
   Total Weight ≈270Kg
   Rated Air Pressure 0.5Mpa
   Minimum Air Pressure 0.4Mpa
