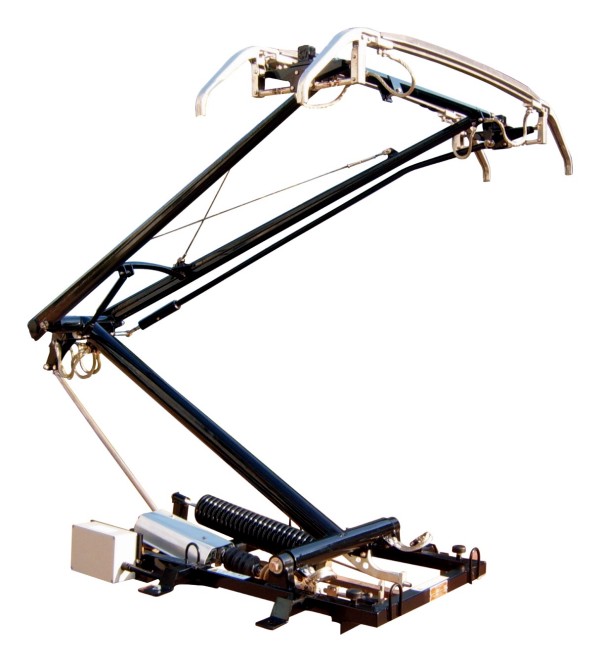

GSE-100 Light Rail Pantograph



   Rated Voltage DC 1500V
   Rated Current 1500A
   Maximum Current ≤2500A
   Max. Speed (Good Catenary Condition) 100Km/h
   Minimum Wire Height Above Lowered 200mm
   Maximum Working Height Above Lowered Position 2410mm
   Collector Strip Length* 1200mm±1mm
   Rated Static Force 70N±10N
   Force Adjustable Range 50N~100N
   Raising Time 6~10s
   Lowering Time 8~12s
   Total Length at Rest 2238mm±10mm
   Total Width of Pan Head 1700mm
   Total Weight ≈145Kg
   Standards IEC 494, IEC 165
