G&Z Enterprises Ltd

The Leading Pantograph Maker in North America

Top Quality Pantographs

G&Z Enterprises is the only professional pantograph manufacturer for metro, light rail, city tram and railway trains in North America.

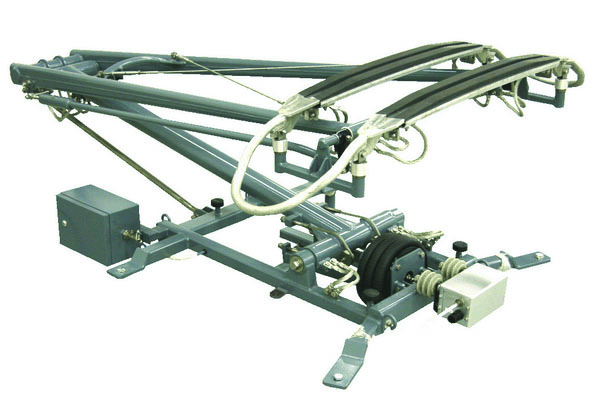

GSL-150 Light Rail Pantograph



   Rated Voltage DC 1500V
   Rated Current 1500A
   Maximum Current ≤2400A
   Vehicle Speed ≤150Km/h
   Minimum Working Height 380mm
   Maximum Working Height* 2300mm
   Maximum Extension Height* 2880mm±100mm
   Lock Down Height ≤305mm
   Rated Static Force 75N
   Force Adjustable Range 50N~150N
   Raising Time ≤10s
   Lowering Time ≤10s
   Total Length ≈2450mm
   Total Width 1950mm
   Base Frame 1100mmx950mm
   Total Weight ≈130Kg
   Rated Air Pressure 0.45Mpa
   Minimum Air Pressure 0.35Mpa
